OM606 - Powered 1993 Mercedes Benz Gelandewagen Cabriolet Turbodiesel

1993 Mercedes-Benz G-Class Additional Info:

1993 Mercedes-Benz G-Class Cabriolet (GCab)

This swap is so meticulously done that it’s essentially the same as mounting a complete ‘97+ body onto a ‘93 G350 frame and changing the VINs. In 1997, Mercedes-Benz introduced a mid-cycle refresh, bringing significant updates across the car—new sheet metal, a full power top, a revised interior, and drivetrain enhancements. This conversion has captured every one of those details flawlessly.

Some key modifications include:

• Cutting out the driver’s side rear wheel well and welding in the ‘97+ rear panel cover to relocate the battery to the trunk.

• Completely reconfiguring the engine bay to match the ‘97+ layout. This includes swapping the entire front driver’s side wheelhouse to reposition the wiper fluid reservoir, which was originally near the firewall on the passenger side in the ‘93 model. They also replaced the front right fender to ensure the correct intake placement—G350s have an intake hole in the driver’s side fender, while G300TDs have it on the passenger side. Everything is spot on for a ‘97+, including relocated ABS, coolant tank, electronics, oil cooler, and even the shift from single to dual washer nozzle sprayers on the fresh air vent intake.

• Swapping the entire upper dashboard for the ‘97+ cluster, which required the revised top dash pad. The center console was also replaced with the later style, power seats and cruise control were added (neither originally on the data card), and the sun visors were updated to the lighted versions from the later models.

The level of detail in this conversion is impressive—it’s clear that serious effort went into making this a true ‘97+ power-top build. Hats off to those who performed this work in Europe!

Even if it’s not an original, it checks every box for G-Wagen desirability: a pre-2001 model, Cabrio with a power top, OM606 engine, and a 5-speed automatic gearbox—both sourced from an original G300TD! What more could you ask for?

Import & Ownership History:

• Imported from 42381 Zeebrugge, Belgium on 8/2/2022.
• Originally a Mercedes corporate-owned vehicle, spending most of its life in Germany.
• VIN:WDB46330017086945
• For additional questions, call or text317.658.5868

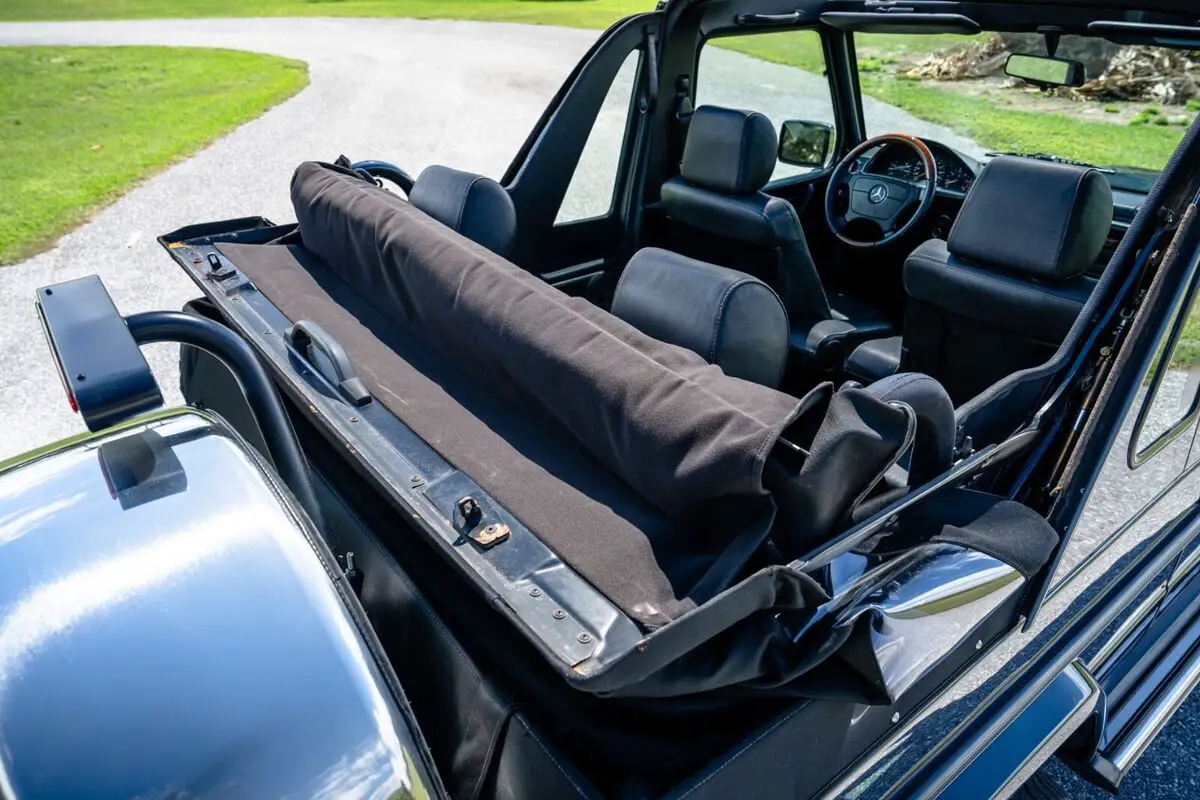

• Factory Power Soft Top– Excellent condition.
• Factory Windscreen– Rare option.
• Heated Seats
• Cruise Control
• Air Conditioning

• Originally a1993 G350TD, now upgraded with a1997 OM606 Turbo Diesel (174hp)from a G300TD.
  • Swap was professionally completed in Europe by the second owner.
  • Known for reliability and increased power.
  • Runs exceptionally well and shifts perfectly.
  • Instrument clusterwas swapped to match the engine, displaying168,252 km (104,546 miles).
  • Chassis mileage is lower but unknown.

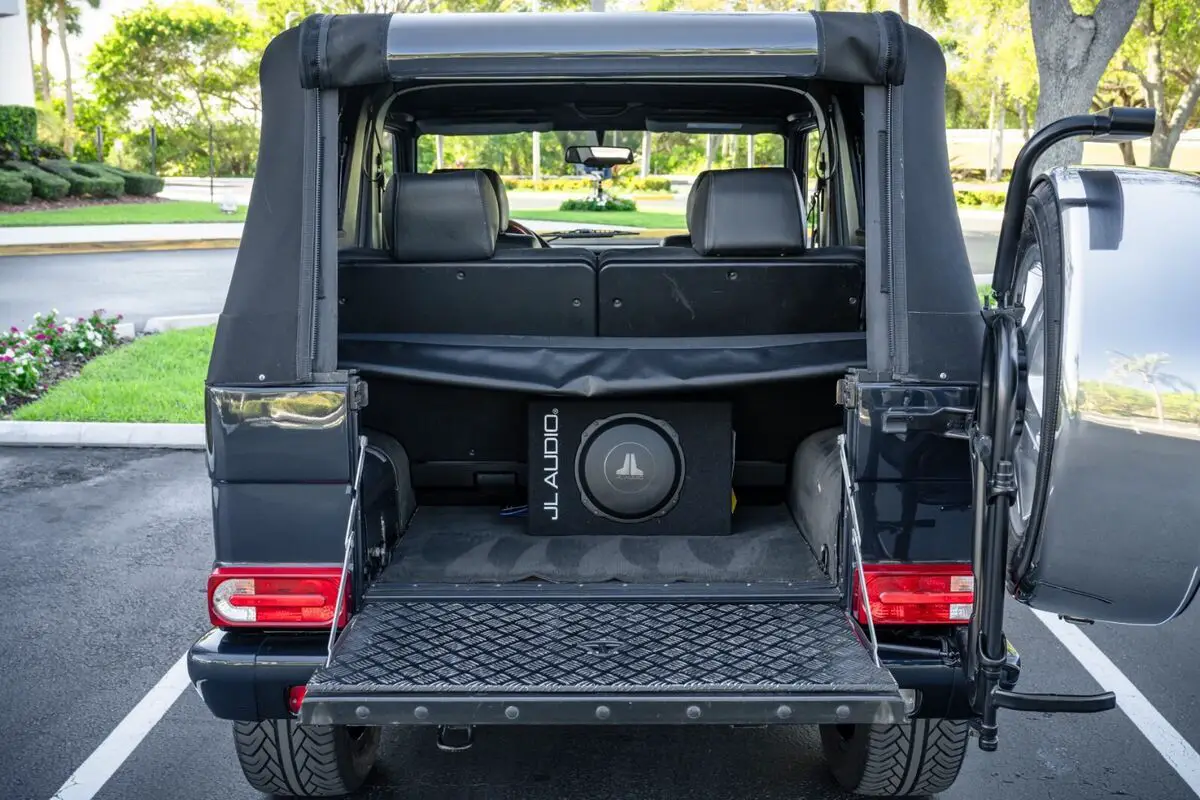

• Focal/JL Audio sound systemwith aBlaupunkt (Bluetooth/USB) head unit– Best car audio system I’ve heard!

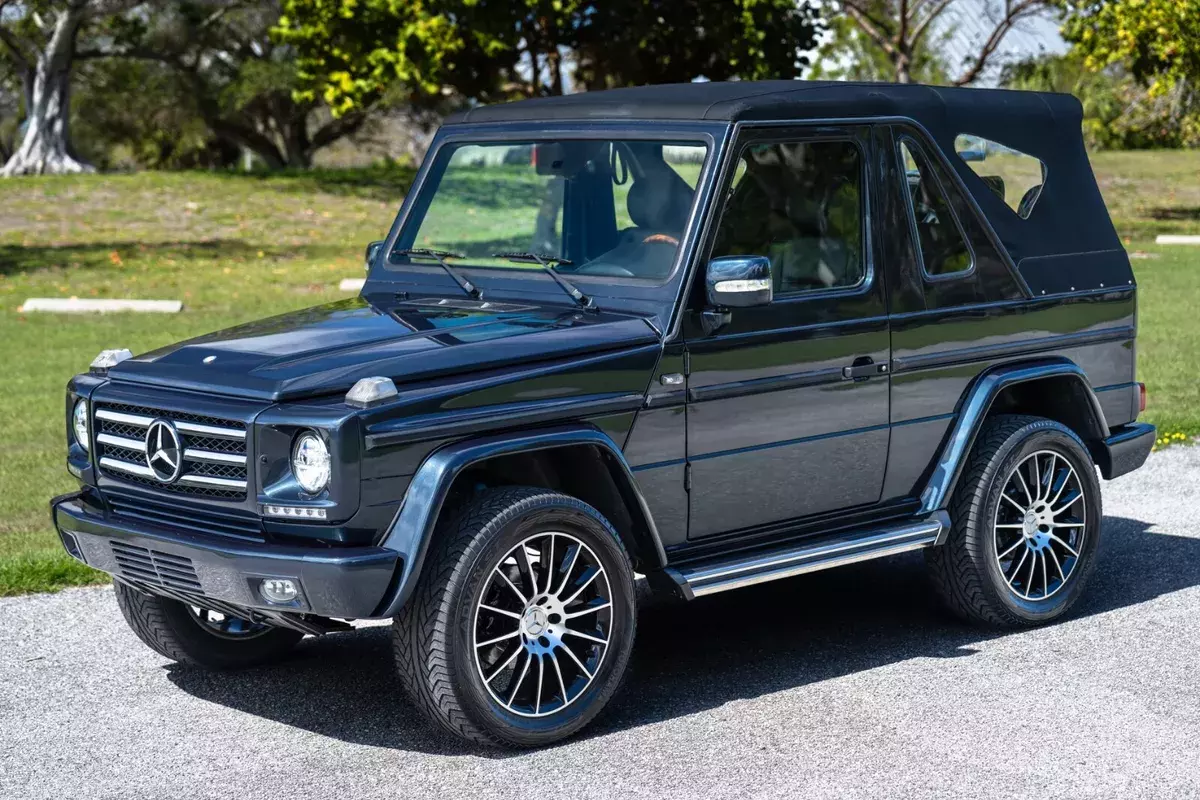

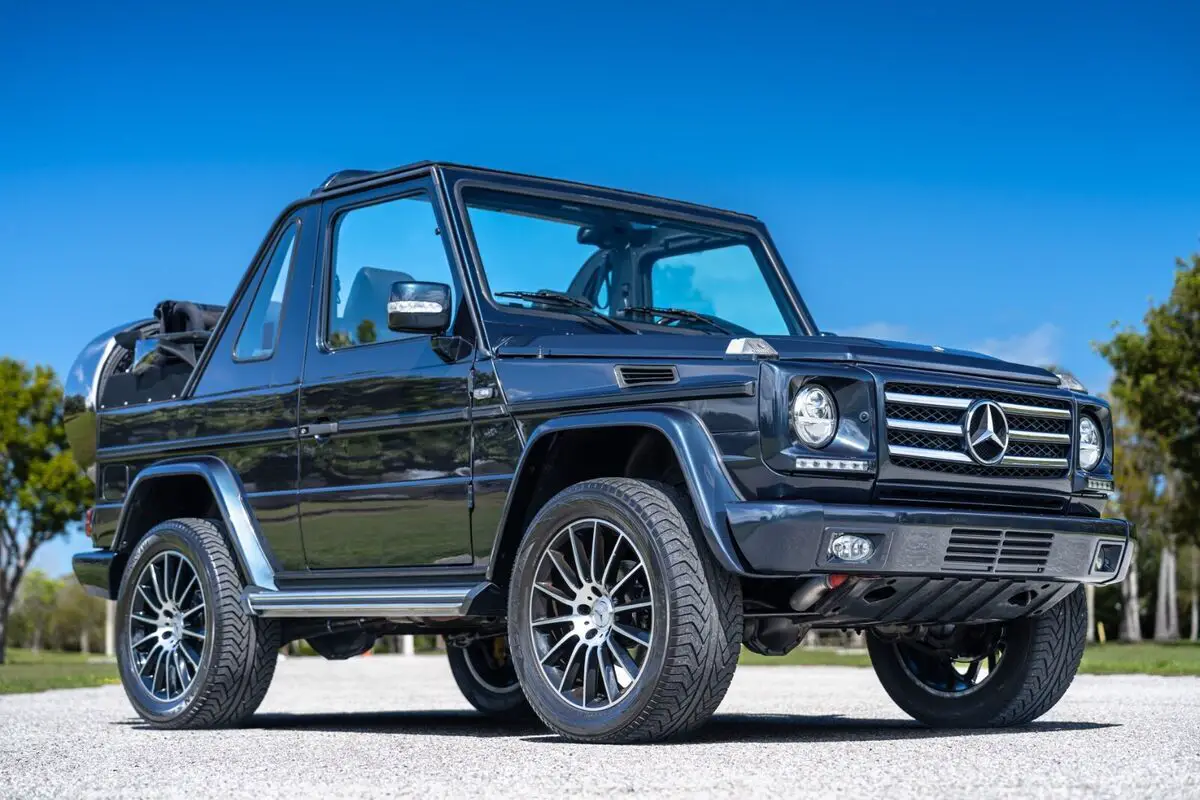

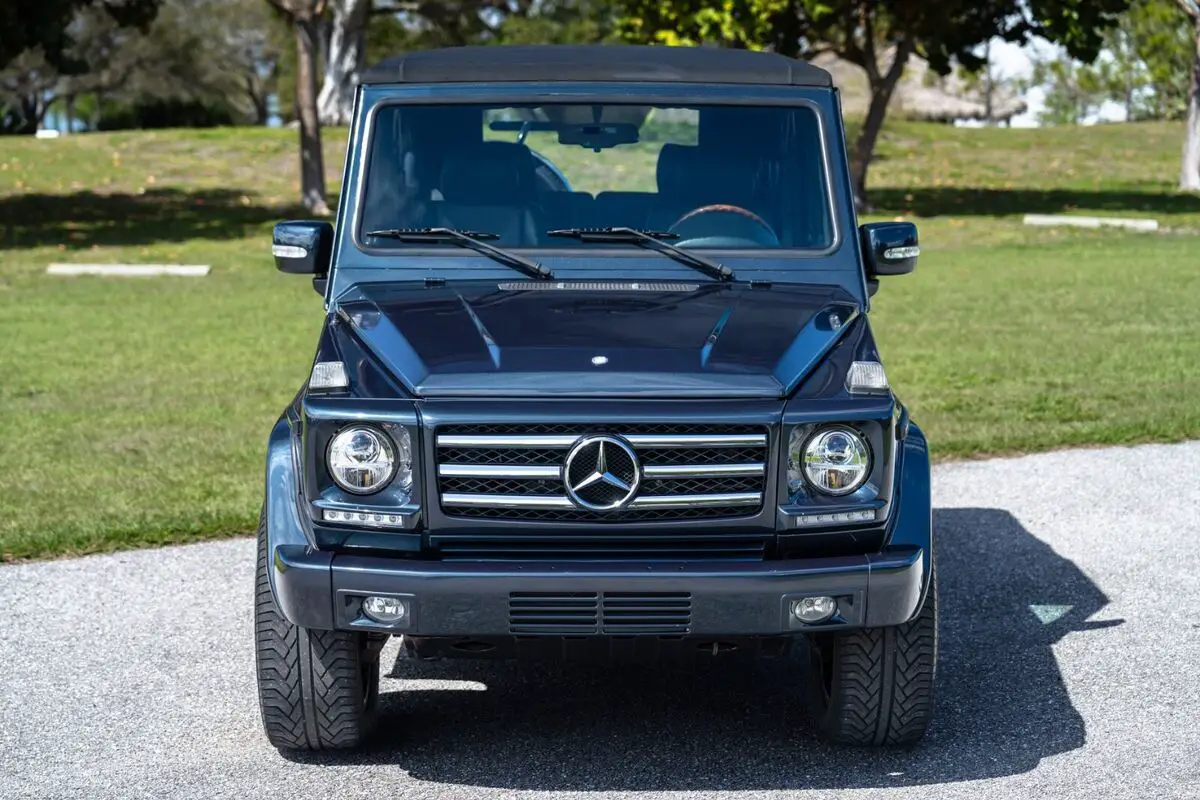

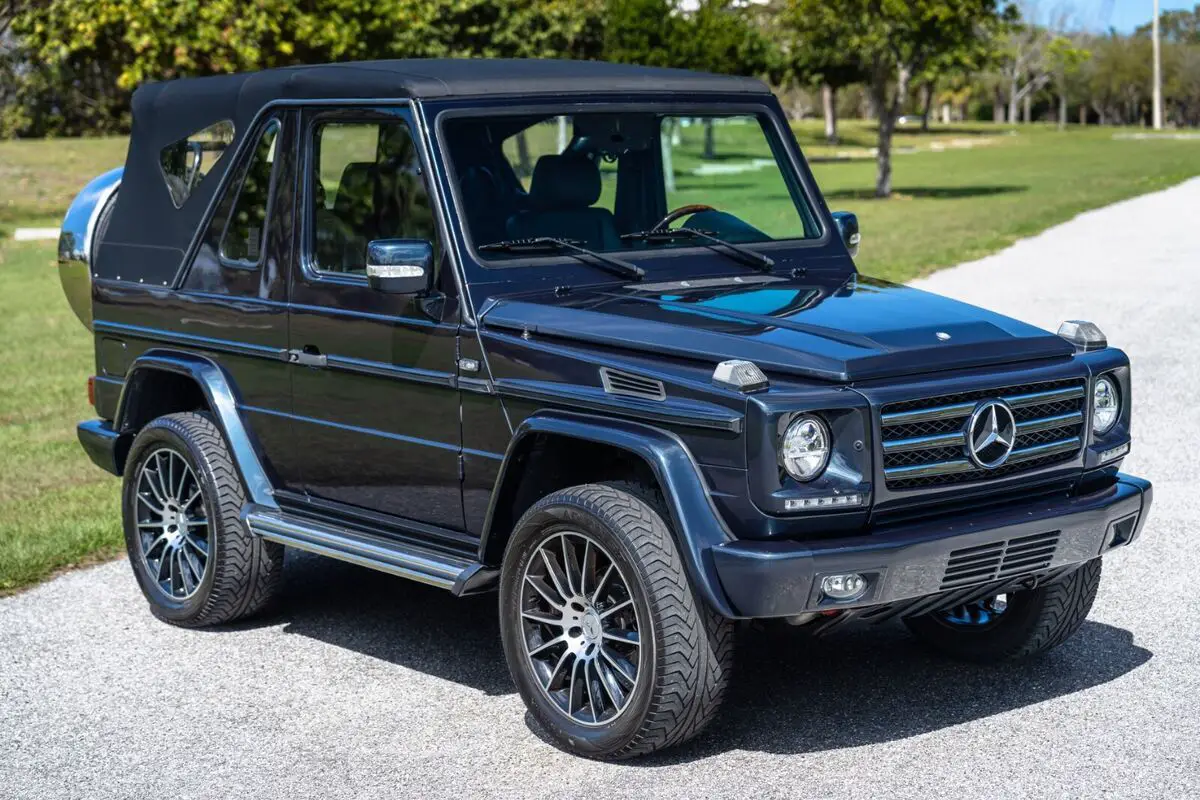

• Front bumper & headlightsupdated to match2002–2018 G-Class, giving a modern cabriolet look!
• AMG OEM Mercedes wheels(from a G550).
• Battery tender unit (CTEK)installed for easy plug-and-play access (tender included).

• Engine & Drivetrain:
  • Water pump, thermostat, radiator, rear main seal, motor mounts, and transmission mounts replaced.
  • Full fuel system maintenance:New fuel lines, resealed fuel pump, and fuel line fittings.
  • Alternator, starter, and battery replaced.
• Suspension & Brakes:
  • Newsteering stabilizerandrear shocks.
  • Newtensioner armandhydraulic shock for tensioner.
  • Rear drum brakespainted in Mercedes gray.
  • Newrear springsandBilstein shocks (set of 4).
• Fluids & Miscellaneous:
  • Full fluid service:Coolant, transfer case, and brake fluid flushed & refilled.
  • Recenttire alignment.
  • Six new glow plugs installed.

• Undercarriage is exceptionally clean, well-maintained in Europe, with only minor surface rust.
• Display Defective message illuminates at start only. It quickly goes away with pressing the "R" button.It is due to modifications. Most likely needs to be reprogrammed. Not an issue to overall functionality.
• Current mileage:Approx. 172,xxx km (108,xxx miles).

For inquiries, call or text317.658.5868

Additional Pictures & Video's available: Interior, Exterior, Start-up. Please let me know if you'd like to view these.
